SK59C - Surface Mount Schottky Barrier Rectifier

Product Overview

Taiwan Semiconductor

Datasheet Details

Part number	SK59C
Manufacturer	Taiwan Semiconductor
File Size	320.81 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	SK59C Datasheet
Note	This datasheet PDF includes multiple part numbers: SK59C, SK510C. Please refer to the document for exact specifications by model.
Additional preview pages of the SK59C datasheet.

Product details

Description

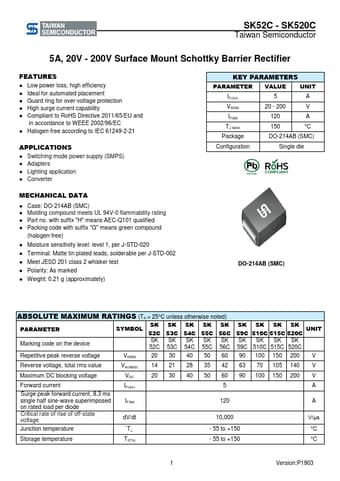

AEC-Q101 qualified Green compound 3 Version:P1903 SK52C - SK520C Taiwan Semiconductor CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) AVERAGE FORWARD CURRENT (A) Fig.1 Forward Current Derating Curve 6 5 4 3 2 1 RESISTIVE OR INDUCTIVE LOAD 0 0 25 50 75 100 125 150 LEAD TEMPERATURE (°C) CAPACITANCE (pF) Fig.2 Typical Junction Capacitance 1000 SK55C - SK56C SK52C - SK54C 100 SK59C - SK520C f=1.0MHz Vsig=50mVp-p 10 0.1 1 10 100 REVERSE VOLTAGE (V) REVERSE VOLT

Features

Low power loss, high efficiency.
Ideal for automated placement.
Guard ring for over-voltage protection.
High surge current capability.
Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
Halogen-free according to IEC 61249-2-21.
