SK510CH, SK52CH - Schottky Barrier Surface Mount Rectifier

SK510CH Description

SK52CH * SK520CH Taiwan Semiconductor 5A, 20V - 200V Schottky Barrier Surface Mount Rectifier .
only.

SK510CH Features

* AEC-Q101 qualified
* Low power loss, high efficiency
* Ideal for automated placement
* Guard ring for over-voltage protection
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
* Halogen-free according to IEC 61249-

SK510CH Applications

* Low voltage, high freq. inverter
* DC/DC converter
* Freewheeling diodes
* Reverse battery protection
* Car lighting KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 5 A 20 - 200 V 120 A 150 °C DO-214AB (SMC) Configuration Single die MECHANICAL DAT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK510CH, SK52CH. Please refer to the document for exact specifications by model.

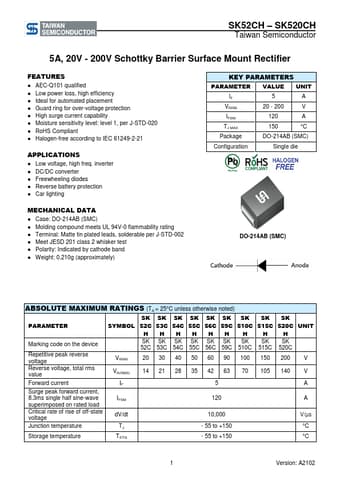

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK510CH, SK52CH
Manufacturer
Taiwan Semiconductor
File Size
453.39 KB
Datasheet
SK52CH-TaiwanSemiconductor.pdf
Description
Schottky Barrier Surface Mount Rectifier
Note
This datasheet PDF includes multiple part numbers: SK510CH, SK52CH.
Please refer to the document for exact specifications by model.
