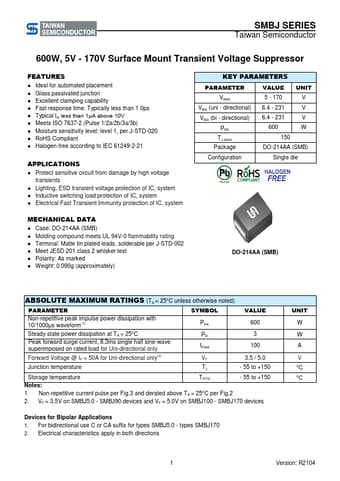

SMBJ90, SMBJ5.0 Datasheet - Taiwan Semiconductor

SMBJ90 Surface Mount Transient Voltage Suppressor

SMBJ90 Features

* Ideal for automated placement

* Glass passivated junction

* Excellent clamping capability

* Fast response time: Typically less than 1.0ps

* Typical IR less than 1μA above 10V

* Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)

* Moisture sensitivity level: level 1, per J-STD-020

Datasheet Details

SMBJ90, SMBJ5.0

Taiwan Semiconductor

456.12 KB

Surface mount transient voltage suppressor.

This datasheet PDF includes multiple part numbers: SMBJ90, SMBJ5.0.
Please refer to the document for exact specifications by model.
