SRS2060, SRS2020, Dual Common Cathode Schottky Rectifiers

SRS2020 * SRS20150 Taiwan Semiconductor 20A, 20V - 150V Schottky Barrier Surface Mount Rectifier .
only.

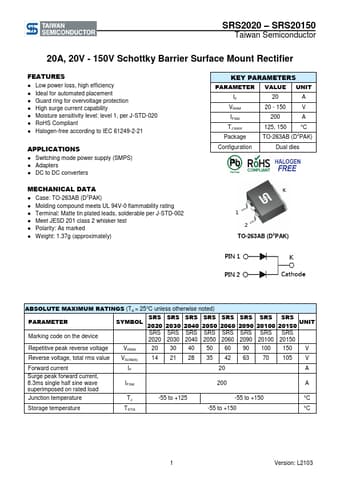

datasheet Preview Page 1 from Datasheet4u.com

SRS2020-TaiwanSemiconductor.pdf

SRS2060 Datasheet Preview — This datasheet PDF includes multiple part numbers: SRS2060, SRS2020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SRS2060, SRS2020

Manufacturer:

Taiwan Semiconductor

File Size:

447.95 KB

Description:

Dual Common Cathode Schottky Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SRS2060, SRS2020.
Please refer to the document for exact specifications by model.

Features

* Low power loss, high efficiency
* Ideal for automated placement
* Guard ring for overvoltage protection
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

Applications

* Switching mode power supply (SMPS)
* Adapters
* DC to DC converters KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 20 A 20 - 150 V IFSM TJ MAX Package 200 A 125, 150 °C TO-263AB (D2PAK) Configuration Dual dies MECHANICAL DATA
* Case: TO-263AB (D2PAK)
* Molding compou
