TS13009

High Voltage NPN Transistor

TS13009 Features

* High Voltage High Speed Switching Block Diagram Structure

* Silicon Triple Diffused Type NPN Silicon Transistor Ordering Information Part No. TS13009CZ C0 Package TO-220 Packing 50pcs / Tube http://www.DataSheet4U.net/ Absolute Maximum Rating (Ta = 25oC unless otherwise n

TS13009 General Description

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.

TS13009 Datasheet (336.21 KB)

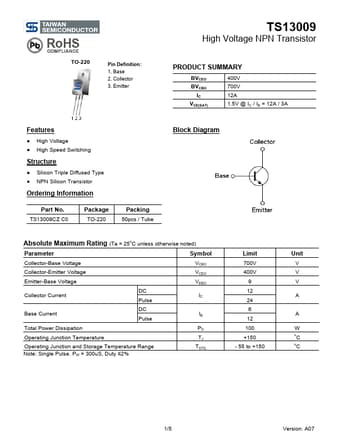

Preview of TS13009 PDF

Datasheet Details

Part number:

TS13009

Manufacturer:

Taiwan Semiconductor

File Size:

336.21 KB

Description:

High voltage npn transistor.
TS13009 High Voltage NPN Transistor TO-220 Pin Definition: 1. Base 2. Collector 3. Emitter PRODUCT SUMMARY BVCEO BVCBO IC VCE(SAT) 400V 700V 12A 1.5V.
