TS19601

700mA High Voltage Adjustable Current Regulator

Taiwan Semiconductor

TS19601 Features

* 0.5V VDROP @ 700mA

* 700mA Maximum Output Current

* Output Current Controlled by External Resistor

* 3µs Fast Response Output Stage Enable Control

* Output Sustaining Voltage up to 75V

* Wide Supply Voltage Range: 5~50V Typical Application Circuit Applications

* High

TS19601 General Description

The TS19601 is a high voltage, low dropout current regulator of maximum output current up to 700mA. The output current is decided by an external resistor, and the output sink current could be disabled via OE pin. TS19601 has internally also build-in thermal protection to prevent the chip over heat d.

TS19601 Datasheet (249.77 KB)

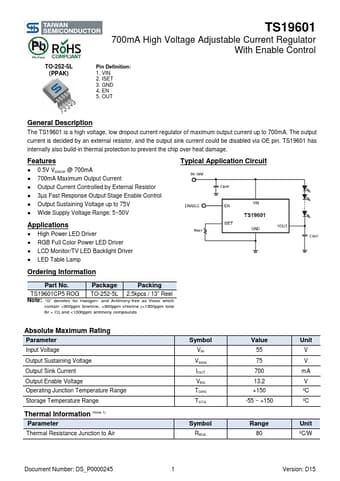

TS19601 Datasheet Preview — Preview of TS19601 PDF

Datasheet Details

Part number:

TS19601

Manufacturer:

Taiwan Semiconductor

File Size:

249.77 KB

Description:

700ma high voltage adjustable current regulator.
TO-252-5L (PPAK) TS19601 700mA High Voltage Adjustable Current Regulator With Enable Control Pin Definition: 1. VIN 2. ISET 3. GND 4. EN 5. OUT Gene.
