TS2580 - 2A / 52KHz Buck Switching Regulator

Taiwan Semiconductor

📥 Download Datasheet

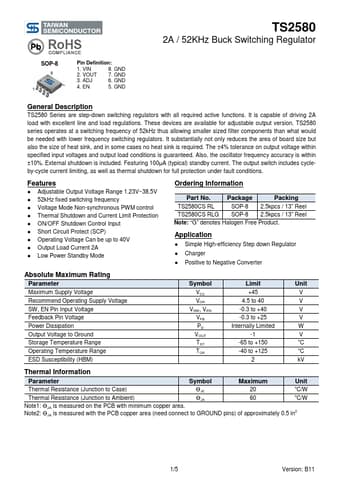

TS2580 Datasheet Preview — Preview of TS2580 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TS2580
Manufacturer: Taiwan Semiconductor
File Size: 93.52 KB
Datasheet: TS2580-TaiwanSemiconductor.pdf
Description: 2A / 52KHz Buck Switching Regulator

TS2580 Product details

Description

TS2580 Series are step-down switching regulators with all required active functions.

Features

Adjustable Output Voltage Range 1.23V~38.5V.
52kHz fixed switching frequency.
Voltage Mode Non-synchronous PWM control.
Thermal Shutdown and Current Limit Protection.
ON/OFF Shutdown Control Input.
Short Circuit Protect (SCP).
Operating Voltage Can be up to 40V.
Output Load Current 2A.
Low Power Standby Mode Ordering Information Part No. Package Packing TS2580CS RL SOP-8 2.5kpcs / 13” Reel TS2580CS RLG SOP-8 2.5kpcs / 13” Reel Note: “G” denot.
