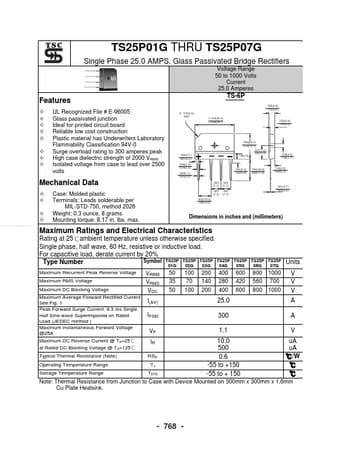

TS25P01G - Glass Passivated Bridge Rectifiers

Taiwan Semiconductor

Datasheet Details

UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 Surge overload rating to 300 amperes peak High case dielectric strength of 2000 VRMS Isolated voltage from case to lead over 2500 volts C .118(3.0) X45 0 1.193(30.3) 1.169(29.7) TS-6P .189(4.8) .173(4.4) .150(3.8) .134(3.4) .799(20.3) .776(19.7) .106(2.7) .091(2.3) .094(2.4) .079(2.0) .043(1.1) .035.
