TS25P06G, TS25P01G - Glass Passivated Bridge Rectifiers

Taiwan Semiconductor

Datasheet Details

Part number	TS25P06G, TS25P01G
Manufacturer	Taiwan Semiconductor ↗
File Size	74.76 KB
Description	Glass Passivated Bridge Rectifiers

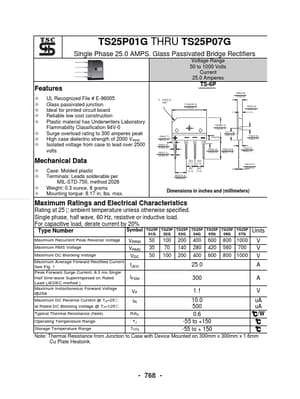

Datasheet	TS25P01G_TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TS25P06G, TS25P01G. Please refer to the document for exact specifications by model.

UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 Surge overload rating to 300 amperes peak High case dielectric strength of 2000 VRMS Isolated voltage from case to lead over 2500 volts C .118(3.0) X45 0 1.193(30.3) 1.169(29.7) TS-6P .189(4.8) .173(4.4) .150(3.8) .134(3.4) .799(20.3) .776(19.7) .106(2.7) .091(2.3) .094(2.4) .079(2.0) .043(1.1) .035.
