TS25P04G, TS25P01G Datasheet - Taiwan Semiconductor

TS25P04G, TS25P01G, Glass Passivated Bridge Rectifiers

TS25P01G THRU TS25P07G Single Phase 25.0 AMPS.Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 25.0 Amperes .

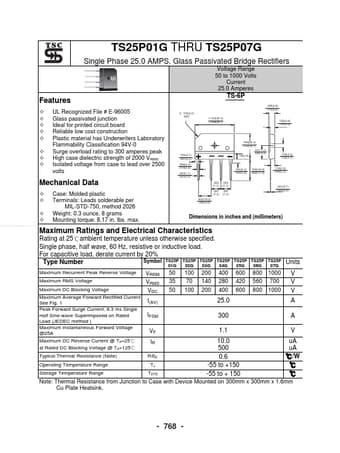

datasheet Preview Page 1 from Datasheet4u.com

TS25P01G_TaiwanSemiconductor.pdf

TS25P04G Datasheet Preview — This datasheet PDF includes multiple part numbers: TS25P04G, TS25P01G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TS25P04G, TS25P01G

Manufacturer:

Taiwan Semiconductor

File Size:

74.76 KB

Description:

Glass Passivated Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: TS25P04G, TS25P01G.
Please refer to the document for exact specifications by model.

Features

* UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 Surge overload rating to 300 amperes peak High case dielectric strength of 2000 VRMS Isolated voltage f
