TS78L03 - 3-Terminal 100mA Positive Voltage Regulator

Name: TS78L03
SKU: TS78L03-1591035

Taiwan Semiconductor

📥 Download Datasheet

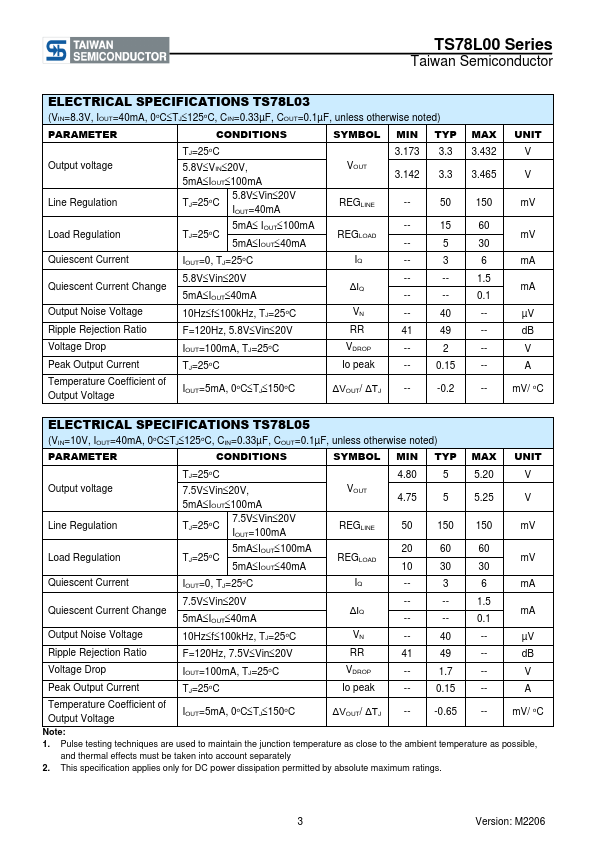

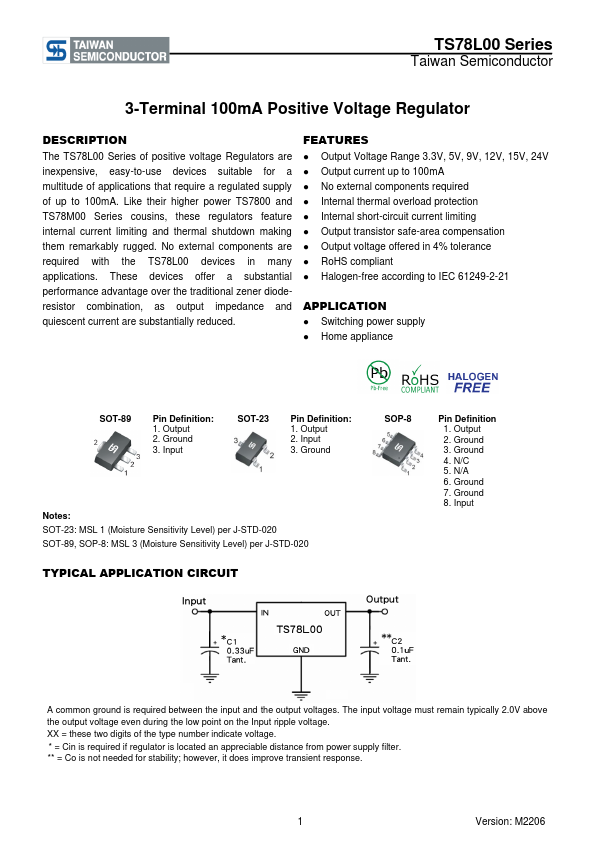

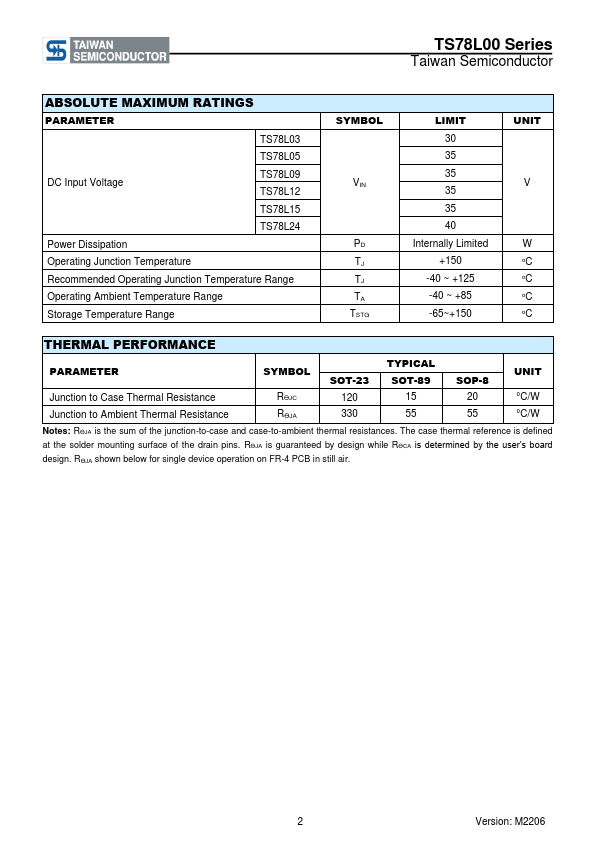

TS78L03 Datasheet Preview — Preview of TS78L03 PDF

Datasheet Details

Part number	TS78L03
Manufacturer	Taiwan Semiconductor
File Size	769.26 KB
Description	3-Terminal 100mA Positive Voltage Regulator
Datasheet	TS78L03-TaiwanSemiconductor.pdf

TS78L03 Product details

Description

The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA.

Features

Output Voltage Range 3.3V, 5V, 9V, 12V, 15V, 24V.
Output current up to 100mA.
No external components required.
Internal thermal overload protection.
Internal short-circuit current limiting.
Output transistor safe-area compensation.
Output voltage offered in 4% tolerance.
RoHS compliant.
Halogen-free according to IEC 61249-2-21.
