TS78L05 - 3-Terminal 100mA Positive Voltage Regulator

This page provides the datasheet information for the TS78L05, a member of the TS78L03 3-Terminal 100mA Positive Voltage Regulator family.

Datasheet Summary

Description

The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA.

Features

Output Voltage Range 3.3V, 5V, 9V, 12V, 15V, 24V.
Output current up to 100mA.
No external components required.
Internal thermal overload protection.
Internal short-circuit current limiting.
Output transistor safe-area compensation.
Output voltage offered in 4% tolerance.
RoHS compliant.
Halogen-free according to IEC 61249-2-21.

Datasheet Details

Part number	TS78L05
Manufacturer	Taiwan Semiconductor
File Size	769.26 KB
Description	3-Terminal 100mA Positive Voltage Regulator
Datasheet	TS78L05 Datasheet

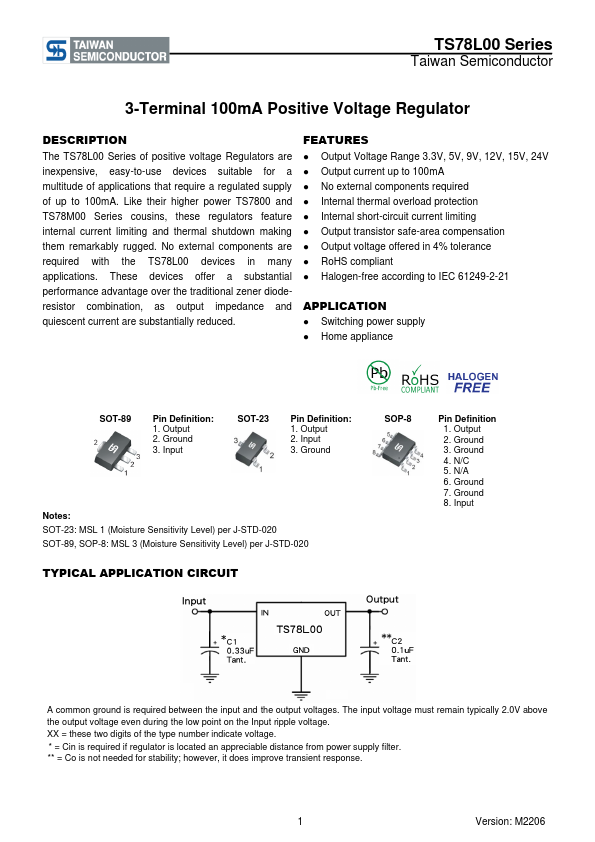

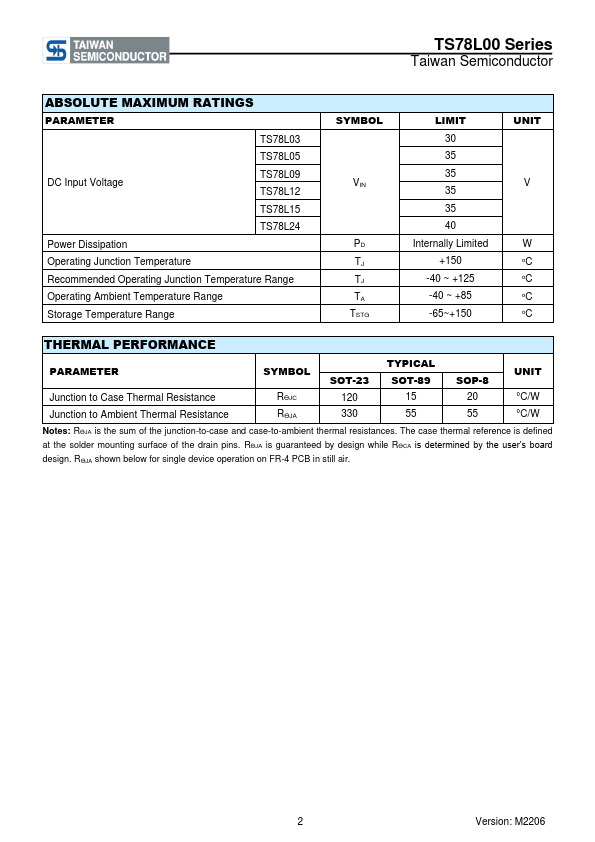

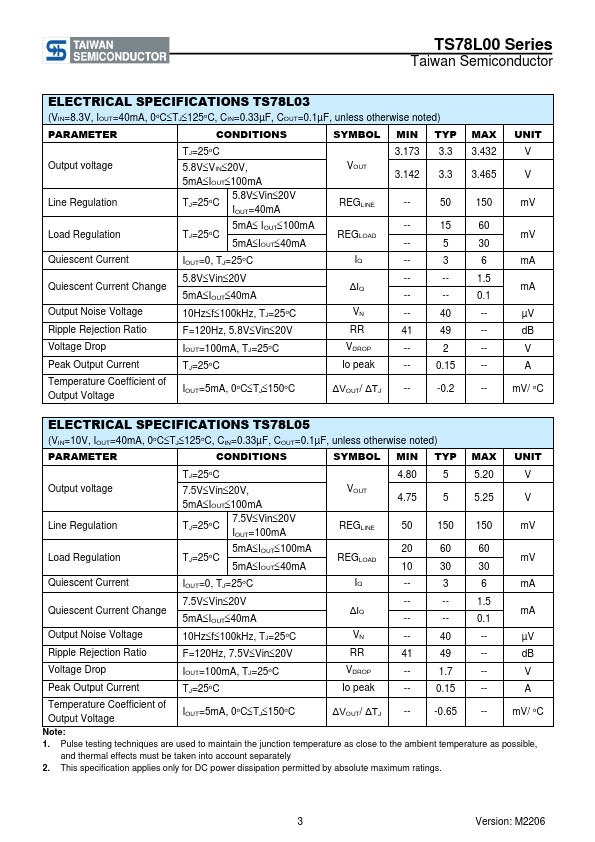

Additional preview pages of the TS78L05 datasheet.

📁 Similar Datasheet

TS78L00 - 3-Terminal 100mA Positive Voltage Regulator (Taiwan Semiconductor Company)

TS78Lxx - 3-Terminal 100mA Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7800A - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7800B - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7805 - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7805A - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7805B - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7805I - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7806 - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

TS7806A - 3-Terminal Fixed Positive Voltage Regulator (Taiwan Semiconductor Company)

Full PDF Text Transcription

Click to expand full text

TS78L00 Series Taiwan Semiconductor 3-Terminal 100mA Positive Voltage Regulator DESCRIPTION The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA. Like their higher power TS7800 and TS78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the TS78L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener dioderesistor combination, as output impedance and quiescent current are substantially reduced. FEATURES ● Output Voltage Range 3.
