TST20H200CW, TST20H100CW - Trench Schottky Rectifier

Taiwan Semiconductor

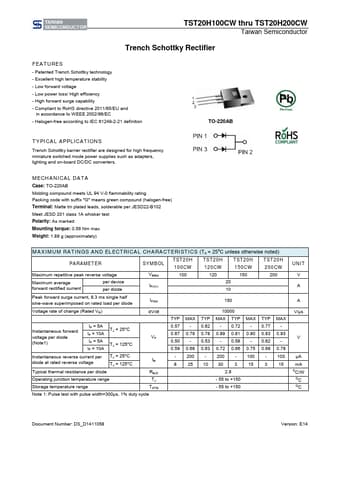

TST20H200CW Datasheet Preview — This datasheet PDF includes multiple part numbers: TST20H200CW, TST20H100CW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TST20H200CW, TST20H100CW
Manufacturer	Taiwan Semiconductor ↗
File Size	206.29 KB
Description	Trench Schottky Rectifier
Datasheet	TST20H100CW-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TST20H200CW, TST20H100CW. Please refer to the document for exact specifications by model.

TST20H200CW Product details

Description

Green compound RATINGS AND CHARACTERISTICS CURVES (TA = 25oC unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 25 20 15 10 WITH HEATSINK 5 3in x 5in x 0.25in Al-Plate 0 0 25 50 75 100 125 150 CASE TEMPERATURE (oC) INSTANTANEOUS FORWARD CURRENT (A) FIG.2 TYPICAL FORWARD CHARACTERISTICS 100 TST20H100CW 10 TJ=150oC 1 TJ=125oC 0.1 TJ=100oC TJ=25oC 0.01 0 0.2 0.4 0.6 0.8 FORWARD VOLTAGE (V) 1 INSTANTANEOUS FORWARD CURRENT (A) FIG.3 TYPICAL FORWAR

Features

- Patented Trench Schottky technology - Excellent high temperature stability - Low forward voltage - Low power loss/ High efficiency - High forward surge capability - Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition TO-220AB.
