TST0010R2A4111XXXX01 - Touch Panel

Datasheet Summary

Description

1.2.

RAYSTAR

📥 Download Datasheet

Datasheet Details

Part number	TST0010R2A4111XXXX01
Manufacturer	RAYSTAR
File Size	200.79 KB
Description	Touch Panel
Datasheet	TST0010R2A4111XXXX01 Datasheet
Additional preview pages of the TST0010R2A4111XXXX01 datasheet.

📁 Similar Datasheet

TST020CY-T01 - TFT-LCD Module (TSD)
TST020QVTI-01 - LCD (TSD)
TST02AH00 - Cannon Trident Connector System (ITT)
TST02AH00 - Cannon Trident Connector System (ITT)
TST02PA00 - Cannon Trident Connector System (ITT)
TST02RA00 - Cannon Trident Connector System (ITT)
TST03AH00 - Cannon Trident Connector System (ITT)
TST03AS00 - Cannon Trident Connector System (ITT)
TST03PA00 - Cannon Trident Connector System (ITT)
TST03RA00 - Cannon Trident Connector System (ITT)

Other Datasheets by RAYSTAR

Full PDF Text Transcription

Click to expand full text

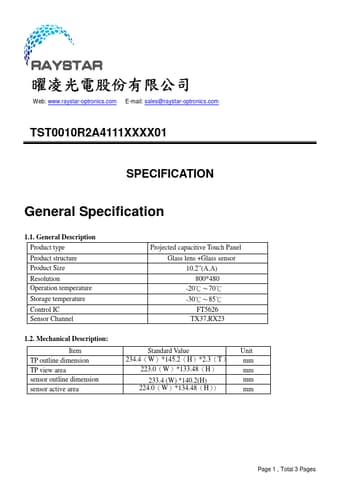

Web: www.raystar-optronics.com E-mail: sales@raystar-optronics.com TST0010R2A4111XXXX01 SPECIFICATION General Specification 1.1. General Description Product type Product structure Product Size Resolution Operation temperature Storage temperature Control IC Sensor Channel 1.2. Mechanical Description: Item TP outline dimension TP view area sensor outline dimension sensor active area Projected capacitive Touch Panel Glass lens +Glass sensor 10.2”(A.A) 800*480 -20℃～70℃ -30℃～85℃ FT5626 TX37,RX23 Standard Value Unit 234.4（W）*145.2（H）*2.3（T） mm 223.0（W）*133.48（H） mm 233.4 (W) *140.2(H) mm 224.0（W）*134.48（H）） mm Page 1 , Total 3 Pages 1.3. Structure Description TST0010R2A4111XXXX01 1.4.
