SDF-3.15-xxxx - (SD Series) High Efficiency Storage Chokes

This page provides the datasheet information for the SDF-3.15-xxxx, a member of the SDF-063-1000 (SD Series) High Efficiency Storage Chokes family.

Datasheet Summary

Features

  • Operating frequency to 200kHz.
  • Small size and high "Q".
  • Highly stable inductance with changing bias current.
  • Fully encapsulated styles available meeting class GFK (-40°C to +125°C, humidity class F) per DIN 40040.
  • Manufactured in ISO-9000 approved factory Electrical Specifications at 25°C Part Number S D __-0.63-400 S D __-0.63-500 S D __-0.63-630 S D __-0.63-1000 S D __-0.63-2000 S D __-0.63-2500 S D __-0.63-4000 S D __-0.63-6000 S D __-1.0-250 S.

📥 Download Datasheet

Datasheet preview – SDF-3.15-xxxx

Datasheet Details

Part number SDF-3.15-xxxx
Manufacturer Talema Electronic
File Size 79.93 KB
Description (SD Series) High Efficiency Storage Chokes
Datasheet download datasheet SDF-3.15-xxxx Datasheet
Additional preview pages of the SDF-3.15-xxxx datasheet.

📁 Similar Datasheet

  • SDF02N20 - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • SDF02N65 - N-Channel MOSFET (SamHop Microelectronics)
  • SDF03N80 - N-Channel MOSFET (SamHop Microelectronics)
  • SDF04N40 - N-Channel MOSFET (SamHop Microelectronics)
  • SDF04N60 - N-Channel MOSFET (SamHop Microelectronics)
  • SDF04N65 - N-Channel MOSFET (SamHop Microelectronics)
  • SDF05N40T - N-Channel MOSFET (SamHop Microelectronics)
  • SDF05N50 - N-Channel MOSFET (SamHop Microelectronics)
  • SDF05N50 - N-Channel 650V Power MOSFET (VBsemi)
  • SDF06N60 - N-Channel MOSFET (SamHop Microelectronics)
Other Datasheets by Talema Electronic

Full PDF Text Transcription

Click to expand full text

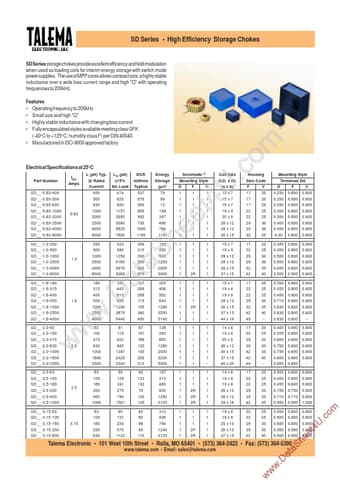

SD Series • High Efficiency Storage Chokes SD Series storage chokes provide excellent efficiency and field modulation when used as loading coils for interim energy storage with switch mode power supplies. The use of MPP cores allows compact size, a highly stable inductance over a wide bias current range and high "Q" with operating frequencies to 200kHz. Features • Operating frequency to 200kHz • Small size and high "Q" • Highly stable inductance with changing bias current • Fully encapsulated styles available meeting class GFK (-40°C to +125°C, humidity class F) per DIN 40040. • Manufactured in ISO-9000 approved factory Electrical Specifications at 25°C Part Number S D __-0.63-400 S D __-0.63-500 S D __-0.63-630 S D __-0.63-1000 S D __-0.63-2000 S D __-0.63-2500 S D __-0.
