TST121TC-L01 - LCD Module

TST121TC-L01 Datasheet Preview — Preview of TST121TC-L01 PDF

Datasheet Details

Part number	TST121TC-L01
Manufacturer	Team Source Display
File Size	1.06 MB
Description	LCD Module
Datasheet	TST121TC-L01-TeamSourceDisplay.pdf

TST121TC-L01 Product details

Description

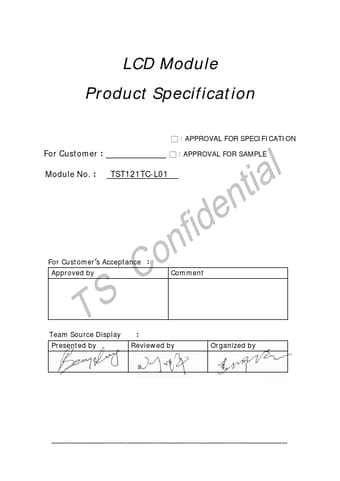

Preliminary Release Change pin definitions Editor Stephe Stephe www.tslcd.com Email: tslcd@tslcd.com Team Source Display LCM Specification 1. OUTLINE 1.1 STRUCTURE AND PRINCIPLE TST121TC-L01 module is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a acklight.The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT

Features

a-Si TFT active matrix.
LVDS interface.
R. G. B input 8bit, 16.2 millions colors (6bit+FRC).
Resolution SVGA (800× 600 pixels).
Wide viewing angle 80°/80° (L/R); 65°/75° (U/D).
Contrast ratio 700 :1.
Module size 279.0 (H) ×209.0 (V) ×9.0 (D) mm.
Fast response time (Ton+ Toff= 35 ms）.
Color gamut (55%).
Edge light type backlight (White-LED).
Inverter less.
RoHS compliance.
TCO 5.0 c.
