TD1660 - 60V/2A Step-Down Converter

TD1660 Description

Techcode® 60V/2A Step-Down Converter TD8325 General .
Features DATASHEET TD1660 The TD1660 is a high frequency step-down switching regulator with integrated internal highside high voltage power MOSFET.

TD1660 Features

* DATASHEET TD1660 The TD1660 is a high frequency step-down switching regulator with integrated internal highside high voltage power MOSFET. It provides 2A output with current mode control for fast loop response and easy compensation. The wide 9V to 60V input range accommodates a variety of step-dow

TD1660 Applications

* including those in automotive input environment. A 1μA shutdown mode supply current allows use in battery-powered applications. High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate drivin

📥 Download Datasheet

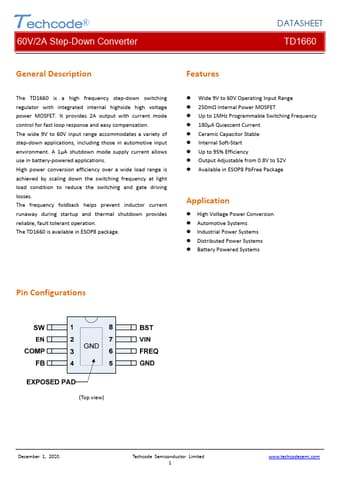

Preview of TD1660 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD1660
Manufacturer
Techcode
File Size
454.17 KB
Datasheet
TD1660-Techcode.pdf
Description
60V/2A Step-Down Converter
