TD1602C 10/100 Base-TX Transformer Modules

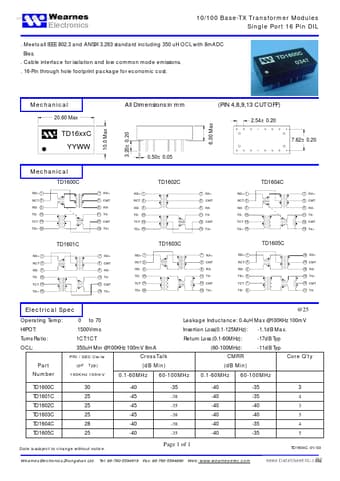

www.DataSheet4U.com 10/100 Base-TX Transformer Modules Single Port 16 Pin DIL . Meets all IEEE 802.3 and ANSIX 3.263 standard including 350 uH OCL with 8mADC Bias. . Cable interface for isolation and low common mode emissions. . 16-Pin through hole footprint package for economic cost. Mechanical 20.60 Max All Dimensions in mm (PIN 4,8,9,13 CUT OFF) 2.54± 0.20 3.20± 0.20 TD16xxC YYWW Mechanical TD1600C RD+ 1 RCT 3 RD- 2 TD- 15 TCT 14 TD+ 16 7 5 6 10.0 Max 6.00 Max 7.62± 0.20 0.50± 0.05.

TD1603C_Wearnes.pdf

TD1602C Datasheet Preview — This datasheet PDF includes multiple part numbers: TD1602C, TD1603C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TD1602C, TD1603C

Manufacturer:

Wearnes

File Size:

109.85 KB

Description:

10/100 base-tx transformer modules.

Note:

This datasheet PDF includes multiple part numbers: TD1602C, TD1603C.
Please refer to the document for exact specifications by model.
