TD6811, 1.5MHz 1.2A Synchronous Step-Down Regulator Dropout

Techcode® 1.5MHz 1.2A Synchronous Step-Down Regulator Dropout DATASHEET TD6811 General .
Features The TD6811 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture.

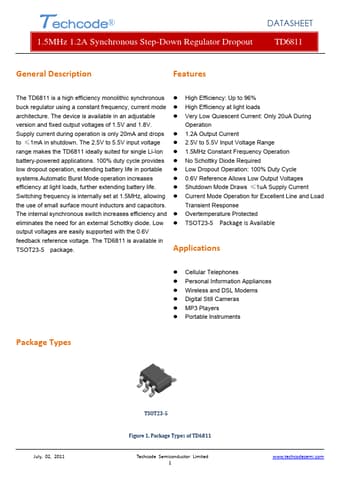

datasheet Preview Page 1 from Datasheet4u.com

TD6811-Techcode.pdf

TD6811 Datasheet Preview — Preview of TD6811 PDF

Datasheet Details

Part number:

TD6811

Manufacturer:

Techcode

File Size:

928.96 KB

Description:

1.5MHz 1.2A Synchronous Step-Down Regulator Dropout

Features

* The TD6811 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version and fixed output voltages of 1.5V and 1.8V. Supply current during operation is only 20mA and drops to ≤1mA in shutdown. The 2

Applications

* 100% duty cycle provides low dropout operation, extending battery life in portable systems. Automatic Burst Mode operation increases efficiency at light loads, further extending battery life. Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capac
