LM385B-1.2V

BANDGAP VOLTAGE REFERENCES

LM385B-1.2V Features

* s Output Tolerance 1% or 2% s Output Voltage Option LM285/385-1.2V 1.235V LM285/385-2.5V 2.5V s Wide Operating Current Range LM285/385-1.2V 15µA to 20mA LM285/385-2.5V 20µA to 20mA s Temperature Coefficient 30ppm/°C s Dynamic Impedance 0.6Ω s TO-92-3 Plastic Package s 8-Pin Plastic Narrow Bod

LM385B-1.2V General Description

The LM285/385-1.2V (1.235V output) and LM285/3852.5V (2.5V output) are bipolar, two-terminal, bandgap voltage references that offer precision performance without premium price. These devices do not require thin-film resistors, greatly lowering manufacturing complexity and cost. A 30ppm/°C output .

LM385B-1.2V Datasheet (50.38 KB)

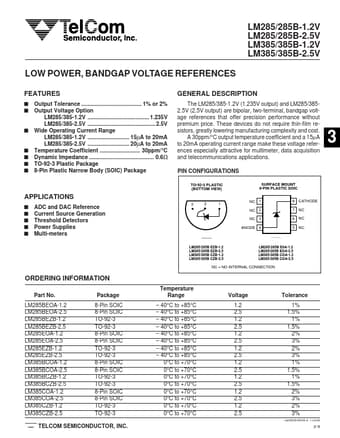

Preview of LM385B-1.2V PDF

Datasheet Details

Part number:

LM385B-1.2V

Manufacturer:

TelCom Semiconductor Inc

File Size:

50.38 KB

Description:

Bandgap voltage references.
