LM385B-2.5

The LM385B-2.5 is Micropower Voltage Reference designed by Texas Instruments.

Product Overview

Texas Instruments

Datasheet Details

Part number	LM385B-2.5, LM385-2.5
Manufacturer	Texas Instruments
File Size	1.47 MB
Description	Micropower Voltage Reference
Datasheet	LM385-2.5-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM385B-2.5, LM385-2.5. Please refer to the document for exact specifications by model.

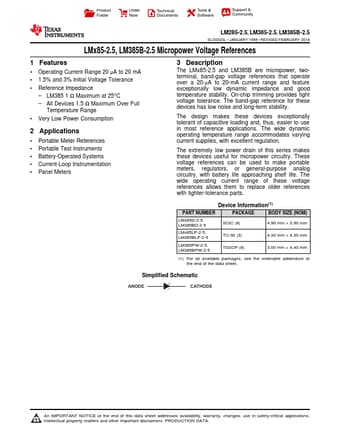

Additional preview pages of the LM385B-2.5 datasheet.

Product details

Description

The LMx85-2.5 and LM385B are micropower, twoterminal, band-gap voltage references that operate over a 20-μA to 20-mA current range and feature exceptionally low dynamic impedance and good temperature stability.

Features

1 Operating Current Range 20 μA to 20 mA.
1.5% and 3% Initial Voltage Tolerance.
Reference Impedance.
LM385 1 Ω Maximum at 25°C.
All Devices 1.5 Ω Maximum Over Full Temperature Range.
Very Low Power Consumption 2.
