TC4403

FLOATING LOAD DRIVER

TC4403 Features

* s Low Quiescent Current 300µA Max s Capacitive Inputs With 300mV Hysteresis s Both Inputs Must Be Driven to Drive Load s Low Output Leakage s High Peak Current Capability s Fast Output Rise Time s Outputs Individually Testable APPLICATIONS s Isolated Load Drivers s Pulsers s Safety Interlocks ORD

TC4403 General Description

The TC4403 is a modified version of the TC4425 driver, intended to drive floating or isolated loads requiring highcurrent pulses. The load is intended to be connected between the outputs without other reference to supply or ground. Then, only when both logic inputs and the VDD input are energized, i.

TC4403 Datasheet (64.35 KB)

Preview of TC4403 PDF

Datasheet Details

Part number:

TC4403

Manufacturer:

TelCom

File Size:

64.35 KB

Description:

Floating load driver.

📁 Related Datasheet

TC4403 - Floating Load Driver (Microchip)
M TC4403 1.5A High-Speed, Floating Load Driver Features • Low Quiescent Current: 300µA Max • Capacitive Inputs With 300mV Hysteresis • Both Inputs .

TC4404 - 1.5A DUAL OPEN-DRAIN MOSFET DRIVERS (TelCom)
1 TC4404 TC4405 1.5A DUAL OPEN-DRAIN MOSFET DRIVERS FEATURES s Independently-Programmable Rise and Fall Times s Low Output Impedance .

TC4404 - 1.5A Dual Open-Drain MOSFET Drivers (Microchip)
TC4404/TC4405 1.5A Dual Open-Drain MOSFET Drivers Features General Description • Independently Programmable Rise and Fall Times • Low Output Impeda.

TC4405 - 1.5A DUAL OPEN-DRAIN MOSFET DRIVERS (TelCom)
1 TC4404 TC4405 1.5A DUAL OPEN-DRAIN MOSFET DRIVERS FEATURES s Independently-Programmable Rise and Fall Times s Low Output Impedance .

TC4405 - 1.5A Dual Open-Drain MOSFET Drivers (Microchip)
TC4404/TC4405 1.5A Dual Open-Drain MOSFET Drivers Features General Description • Independently Programmable Rise and Fall Times • Low Output Impeda.

TC4420 - (TC4420 /TC4429) 6A HIGH-SPEED MOSFET DRIVERS (TelCom Semiconductor)
1 TC4420 TC4429 6A HIGH-SPEED MOSFET DRIVERS FEATURES s s s s s s s s s s s s Latch-Up Protected Will Withstand > 1.5A Reverse Output Cu.

TC4420 - (TC4420 /TC4429) 6A HIGH-SPEED MOSFET DRIVERS (Microchip Technology)
TC4420 TC4429 6A HIGH-SPEED MOSFET DRIVERS FEATURES s s s s s s s s s s s s Latch-Up Protected Will Withstand >1.5A Reverse Output Curren.

TC4421 - (TC4421 / TC4422) 9A HIGH-SPEED MOSFET DRIVERS (TelCom Semiconductor)
1 TC4421 TC4422 9A HIGH-SPEED MOSFET DRIVERS FEATURES s s s s Tough CMOS™ Construction High Peak Output Current 9A .

TAGS

TC4403 FLOATING LOAD DRIVER TelCom

Image Gallery

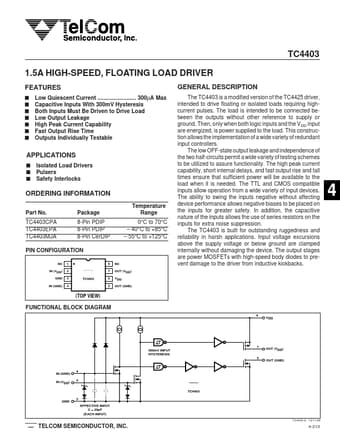

TC4403 Datasheet Preview Page 2 TC4403 Datasheet Preview Page 3
