AC1036 - TO-8 CASCADABLE AMPLIFIERS

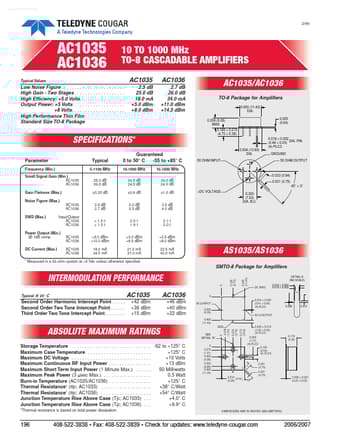

www.DataSheet4U.com 2/99 AC1035 AC1036 Typical Values 10 TO 1000 MHz TO-8 CASCADABLE AMPLIFIERS AC1035 2.5 dB 25.0 dB 18.0 mA +5.0 dBm +8.0 dBm AC1036 2.7 dB 26.0 dB 34.0 mA +11.0 dBm +14.5 dBm Low Noise Figure .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

High Gain - Two Stages .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

High Efficiency; +5.0 Volts .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

Output Power; +5 Volts .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

+8 Volts.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

High

AC1035_TeledyneTechnologies.pdf

This datasheet PDF includes multiple part numbers: AC1036, AC1035. Please refer to the document for exact specifications by model.
