CD21CDW, CD20CDW - DC Solid-State Relay

Teledyne

CD21CDW Datasheet Preview — This datasheet PDF includes multiple part numbers: CD21CDW, CD20CDW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CD21CDW, CD20CDW
Manufacturer	Teledyne
File Size	729.90 KB
Description	DC Solid-State Relay
Datasheet	CD20CDW-Teledyne.pdf
Note	This datasheet PDF includes multiple part numbers: CD21CDW, CD20CDW. Please refer to the document for exact specifications by model.

CD21CDW Product details

Description

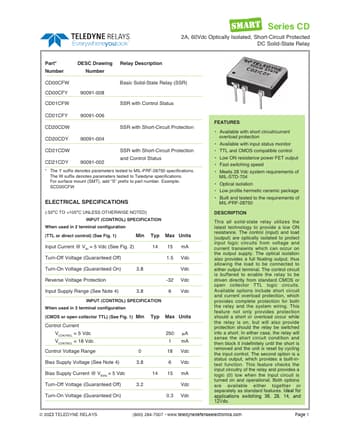

Number CD00CFW CD00CFY CD01CFW 90091-008 Basic Solid-State Relay (SSR) SSR with Control Status CD01CFY 90091-006 CD20CDW SSR with Short-Circuit Protection CD20CDY 90091-004 CD21CDW SSR with Short-Circuit Protection CD21CDY 90091-002 and Control Status The Y suffix denotes parameters tested to MIL-PRF-28750 specifications.

Features

Available with short circuit/current overload protection.
Available with input status monitor.
TTL and CMOS compatible control.
Low ON resistance power FET output.
Fast switching speed.
Meets 28 Vdc system requirements of MIL-STD-704.
Optical isolation.
Low profile hermetic ceramic package.
Built and tested to the requirements of MIL-PRF-28750.
