S422DD

Commercial Electromechanical Relay

S422DD Features

* All welded construction.

* Unique uni-frame design providing high magnetic efficiency and mechanical rigidity.

* High force/mass ratios for resistance to shock and vibration.

* Advanced cleaning techniques provide maximum assurance of internal cleanliness.

S422DD General Description

The magnetic-latching TO-5 relay, originally conceived and developed by Teledyne, has become one of the industry standards for low-level switching from dry circuit to 1 ampere. Designed for high-density PC board surface mounting, its small size and low coil power dissipation make the S422 relay one .

S422DD Datasheet (511.93 KB)

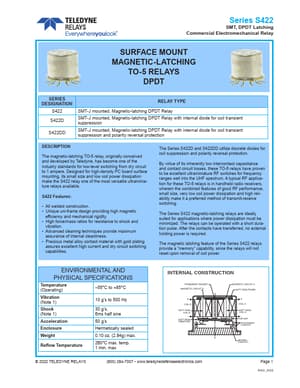

Preview of S422DD PDF

Datasheet Details

Part number:

S422DD

Manufacturer:

Teledyne

File Size:

511.93 KB

Description:

Commercial electromechanical relay.
Series S422 SMT, DPDT Latching Commercial Electromechanical Relay SURFACE MOUNT MAGNETIC-LATCHING TO-5 RELAYS DPDT SERIES DESIGNATION S422 S422D S42.
