S48A125, S48R50, AC/DC Controller

Series S Single Output to 660 Vac AC/DC Control Part No.S24D40 S48R50 S48D50 S48A50 S48R75 S48A125 S60D125 Load Voltage 12 *280 Vrms Load C.
The Series S single-phase relays are designed for all types of loads.

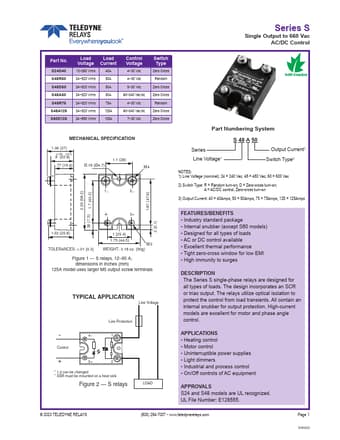

datasheet Preview Page 1 from Datasheet4u.com

S48R50-Teledyne.pdf

S48A125 Datasheet Preview — This datasheet PDF includes multiple part numbers: S48A125, S48R50. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S48A125, S48R50

Manufacturer:

Teledyne

File Size:

564.69 KB

Description:

AC/DC Controller

Note:

This datasheet PDF includes multiple part numbers: S48A125, S48R50.
Please refer to the document for exact specifications by model.

Features

* BENEFITS
* Industry standard package
* Internal snubber (except S60 models)
* Designed for all types of loads
* AC or DC control available
* Excellent thermal performance
* Tight zero-cross window for low EMI
* High immunity to surges DESCRIPTI

Applications

* Heating control
* Motor control
* Uninterruptible power supplies
* Light dimmers
* Industrial and process control
* On/Off controls of AC equipment APPROVALS S24 and S48 models are UL recognized. UL File Number: E128555. © 2023 TELEDYNE RELAYS (800
