73S8009C Datasheet - Teridian Semiconductor

73S8009C Versatile Power Management and Smart Card Interface IC

The Teridian 73S8009C is a versatile power management and single smart card interface circuit that is ideally suited for smart card reader products that are battery and/or USB bus-powered. In addition to its EMV 4.1 and ISO-7816-3 compliant smart card-to-host interface circuitry; it provides control.
73S8009C Versatile Power Management and Smart Card Interface IC Simplifying System Integration™ DS_8009C_025 www.DataSheet4U.com DATA SHEET February 2010 When power is supplied by VPC or VBAT , the 73S8009C is controlled by the ON_OFF pin in the manner of a “push-on/push-off” button action. The OFF_REQ and OFF_ACK signals provide handshaking and control of the power “off” function by the controller. A SPST momentary switch to ground connected to ON_OFF is all that is required for power control.

73S8009C Features

* Smart card Interface:

* Complies with ISO-7816-3 and EMV 4.1 and derivative standards

* A DC-DC Converter provides 1.8 V/3 V/5 V to the card from a wide range of external power supply inputs

* Provides up to 65 mA to the card

* ISO-7816-3 Card emergency deac

73S8009C Datasheet (619.73 KB)

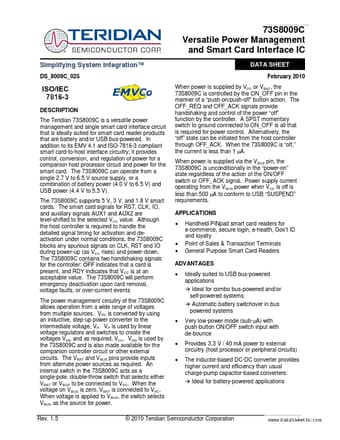

Preview of 73S8009C PDF
