73S8010R

Low Cost Smart Card Interface

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Maxim Integrated Products 73S8010R-IM-F IC INTERFACE SPECIALIZED 32QFN DigiKey 0 0
$0

73S8010R Datasheet (589.60 KB)

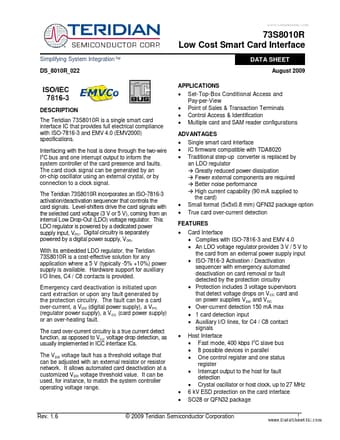

Preview of 73S8010R PDF Datasheet

Datasheet Details

Part number:

73S8010R

Manufacturer:

Teridian Semiconductor

File Size:

589.60 KB

Description:

Low cost smart card interface

73S8010R Features

* Card Interface

* Complies with ISO-7816-3 and EMV 4.0

* An LDO voltage regulator provides 3 V / 5 V to the card from an external power supply input

* ISO-7816-3 Activation / Deactivation sequencer with emergency automated deactivation on card removal or fault detect

73S8010R General Description

The Teridian 73S8010R is a single smart card interface IC that provides full electrical compliance with ISO-7816-3 and EMV 4.0 (EMV2000) specifications. Interfacing with the host is done through the two-wire 2 I C bus and one interrupt output to inform the system controller of the card presence and .
