DF104S - DF SERIES 15 AMP THERMAL CUTOFFS

Datasheet Details

Part number	DF104S
Manufacturer	Thermtrol Corporation
File Size	136.65 KB
Description	DF SERIES 15 AMP THERMAL CUTOFFS

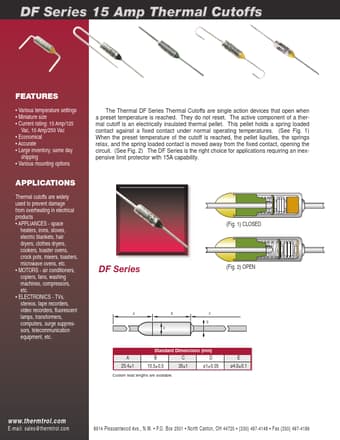

Datasheet	DF104S-ThermtrolCorporation.pdf

Various temperature settings.
Miniature size.
Current rating: 15 Amp/125 Vac, 10 Amp/250 Vac.
Economical.
Accurate.
Large inventory; same day shipping.
Various mounting options The Thermal DF Series Thermal Cutoffs are single action devices that open when a preset temperature is reached. They do not reset. The active component of a thermal cutoff is an electrically insulated thermal pellet. This pellet holds a spring loaded contact.
