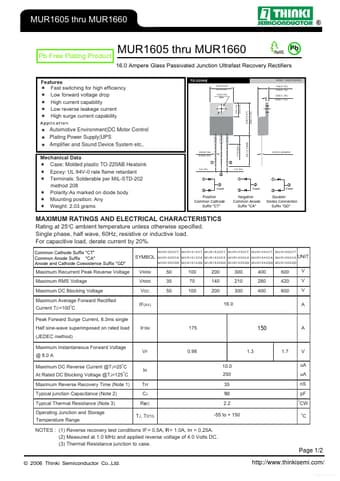

MUR1620E, MUR1605CT - 16.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier

Thinki Semiconductor

Datasheet Details

Part number: MUR1620E, MUR1605CT
Manufacturer: Thinki Semiconductor
File Size: 315.77 KB
Datasheet: MUR1605CT_ThinkiSemiconductor.pdf
Description: 16.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier
Note: This datasheet PDF includes multiple part numbers: MUR1620E, MUR1605CT.
Please refer to the document for exact specifications by model.

Fast switching for high efficiency Low forward voltage drop High current capability Low reverse leakage current High surge current capability Application Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .269(6.85) .226(5.75) .624(15.87) .50(12.7)MIN Mechanical Data Case: Molded plastic TO-220AB Heatsink Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity:As marked on diode body Mounting position: Any Weight: 2.03 grams .038(0.96) .019(0.5.
