UGF1005GS

10 Ampere Insulated Series Connection Ultra Fast Recovery Half Bridge Rectifiers

UGF1005GS Features

* Latest GPP technology with ultra fast recovery time Low forward voltage drop High current capability Low reverse leakage current High surge current capability Application Automotive Inverters and Solar Inverters Plating Power Supply,SMPS and UPS Car Audio Amplifiers and Sound Device Systems ITO-220

UGF1005GS Datasheet (322.48 KB)

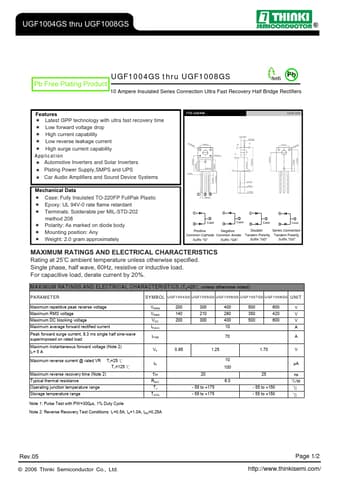

Preview of UGF1005GS PDF

Datasheet Details

Part number:

UGF1005GS

Manufacturer:

Thinki Semiconductor

File Size:

322.48 KB

Description:

10 ampere insulated series connection ultra fast recovery half bridge rectifiers.
UGF1004GS thru UGF1008GS ® UGF1004GS thru UGF1008GS Pb Free Plating Product Pb 10 Ampere Insulated Series Connection Ultra Fast Recovery Half Brid.
