FGA04 - Photodiodes

Description

The Thorlabs FGA04 photodiode is ideal for measuring both pulsed and CW fiber light sources, by converting the optical power to an electrical current.

The InGaAs detector is housed in a TO-46(mod) package with an anode, cathode and case connection, mounted in an FC bulkhead connector.

📥 Download Datasheet

Datasheet preview – FGA04

Datasheet Details

Part number FGA04
Manufacturer Thorlabs
File Size 28.86 KB
Description Photodiodes
Datasheet download datasheet FGA04 Datasheet
Additional preview pages of the FGA04 datasheet.

📁 Similar Datasheet

Other Datasheets by Thorlabs

Full PDF Text Transcription

Click to expand full text

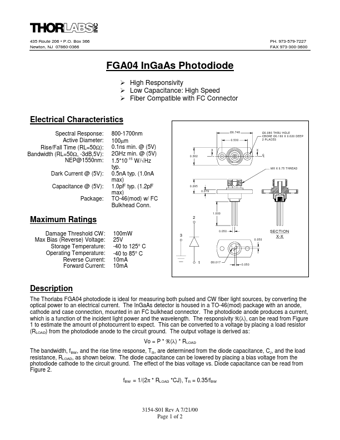

435 Route 206 • P.O. Box 366 Newton, NJ 07860-0366 FGA04 InGaAs Photodiode High Responsivity Low Capacitance: High Speed Fiber Compatible with FC Connector PH. 973-579-7227 FAX 973-300-3600 Electrical Characteristics Spectral Response: Active Diameter: Rise/Fall Time (RL=50Ω): Bandwidth (RL=50Ω, -3dB,5V): NEP@1550nm: Dark Current @ (5V): Capacitance @ (5V): Package: 800-1700nm 100µm 0.1ns min. @ (5V) 2GHz min. @ (5V) 1.5*10-15 W/√Hz typ. 0.5nA typ. (1.0nA max) 1.0pF typ. (1.2pF max) TO-46(mod) w/ FC Bulkhead Conn. Maximum Ratings Damage Threshold CW: Max Bias (Reverse) Voltage: Storage Temperature: Operating Temperature: Reverse Current: Forward Current: 100mW 25V -40 to 125° C -40 to 85° C 10mA 10mA X 0.362 0.295 0.079 Ø0.748 0.530 Ø0.086 THRU HOLE CBORE Ø0.160 X 0.
