S5DBF - Surface Mount General Purpose Silicon Rectifiers

S5DBF Description

SR Tinysemi Surface Mount General Purpose Silicon Rectifiers .

S5DBF Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place

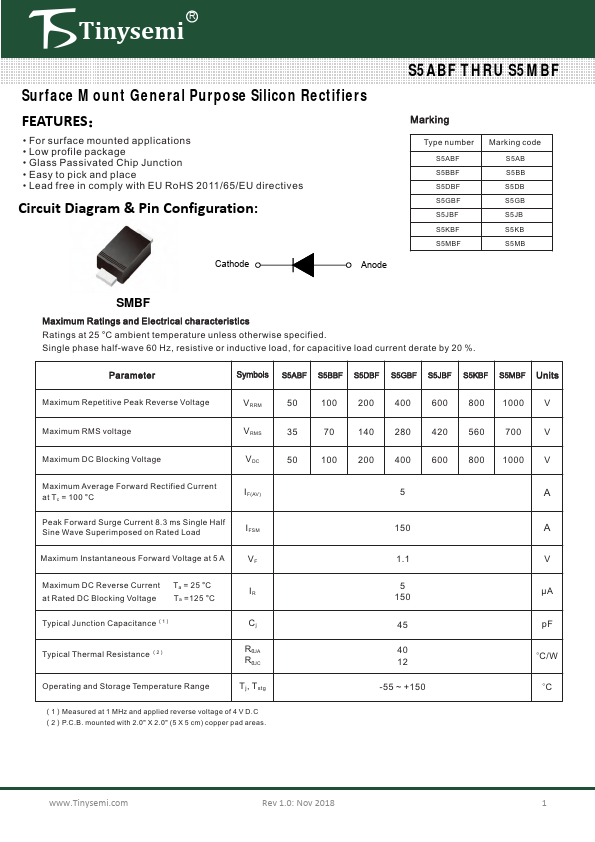

* Lead free in comply with EU RoHS 2011/65/EU directives Circuit Diagram & Pin Configuration: Cathode Anode S5ABF THRU S5MBF Marking Type number S5ABF S5BBF S5DBF S5GBF S5JBF S5KBF S5

📥 Download Datasheet

Preview of S5DBF PDF

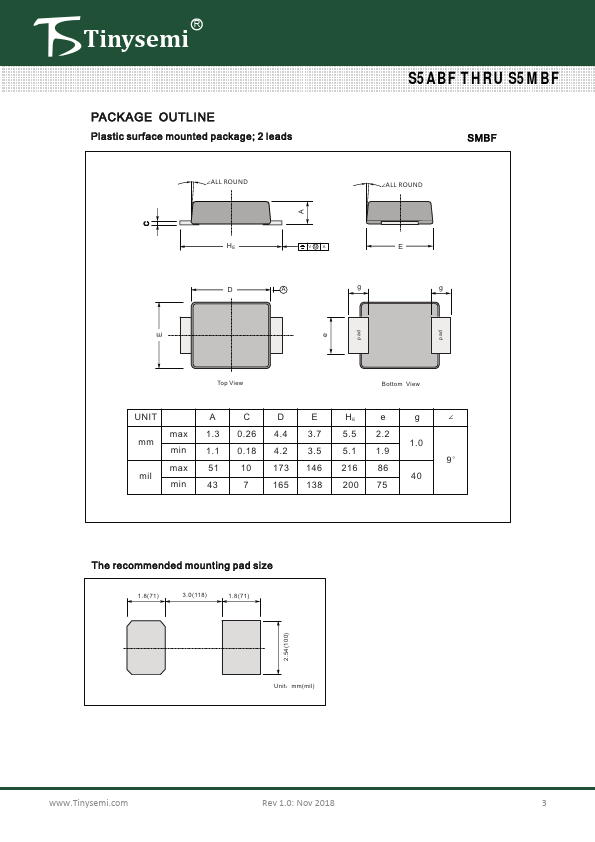

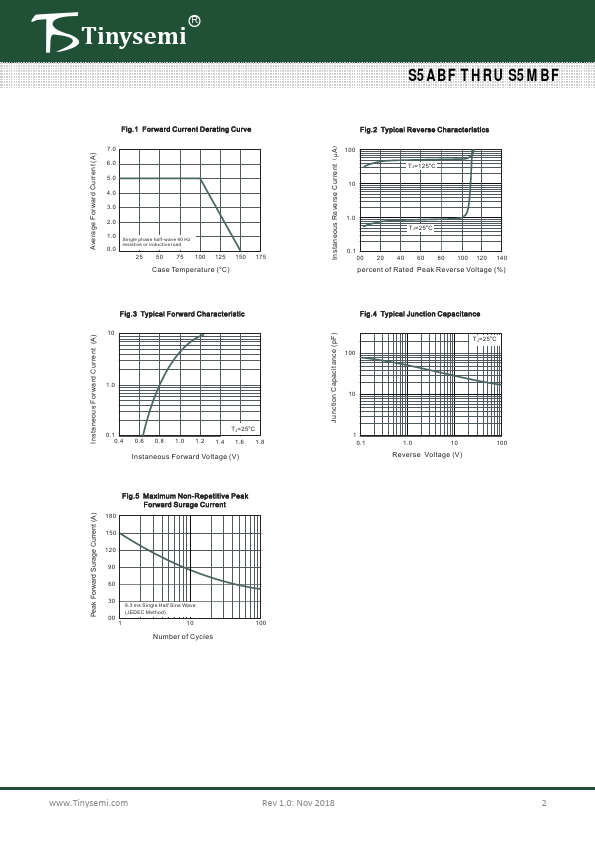

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S5DBF
Manufacturer
Tinysemi
File Size
540.11 KB
Datasheet
S5DBF-Tinysemi.pdf
Description
Surface Mount General Purpose Silicon Rectifiers
