S5GBF - Surface Mount General Purpose Silicon Rectifiers

S5GBF Description

SR Tinysemi Surface Mount General Purpose Silicon Rectifiers .

S5GBF Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Lead free in comply with EU RoHS 2011/65/EU directives Circuit Diagram & Pin Configuration: Cathode Anode S5ABF THRU S5MBF Marking Type number S5ABF S5BBF S5DBF S5GBF S5JBF S5KBF S5

📥 Download Datasheet

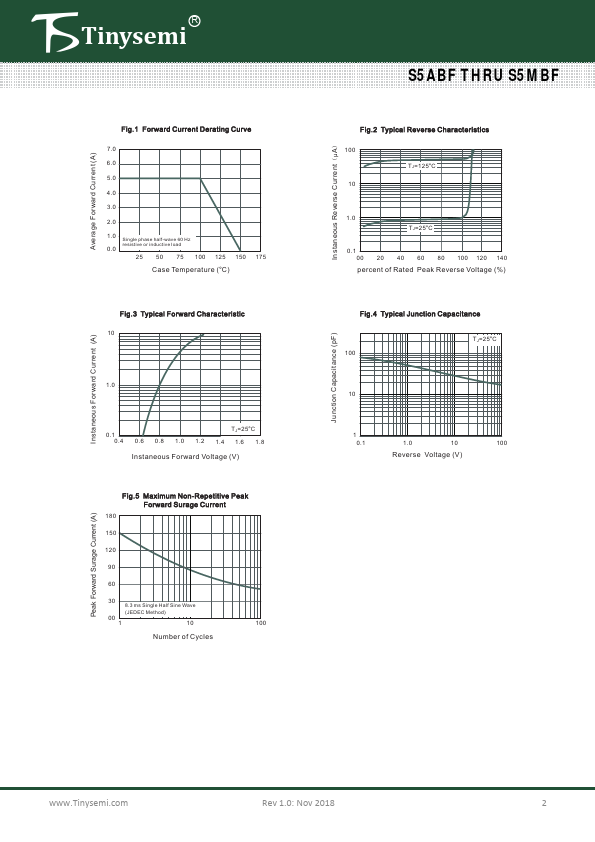

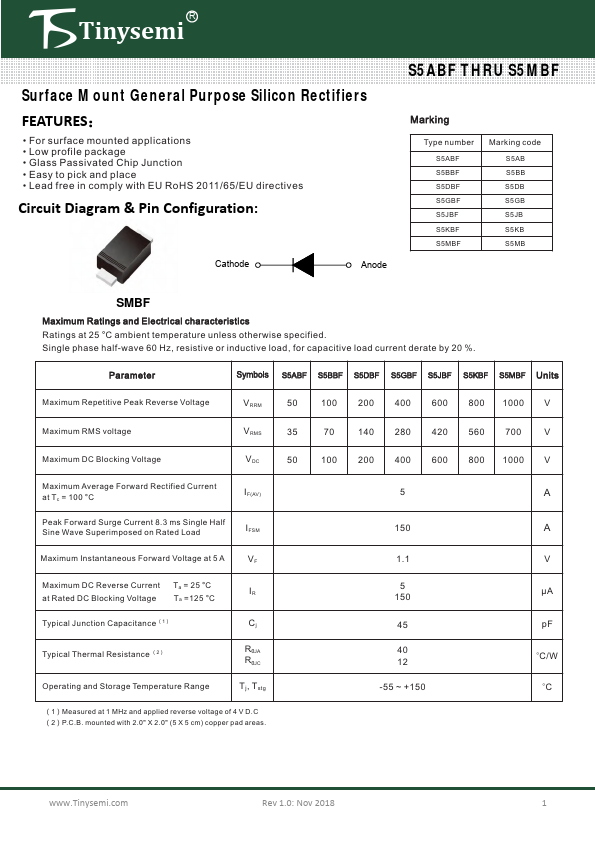

S5GBF Datasheet Preview — Preview of S5GBF PDF

Datasheet Details

Part number: S5GBF
Manufacturer: Tinysemi
File Size: 540.11 KB
Datasheet: S5GBF-Tinysemi.pdf
Description: Surface Mount General Purpose Silicon Rectifiers
