TM1809

9-channel LED driver control IC

TM1809 General Description

TM1809 is a 9-channel LED driver control IC. Internal integrated with MCU digital interface, data flip-latch, LED high voltage driver and so on .Through the external MCU control, the chip can achieve separate luminance, and through cascade control can achieve outdoor large-screen color dot-matrix l.

TM1809 Datasheet (258.62 KB)

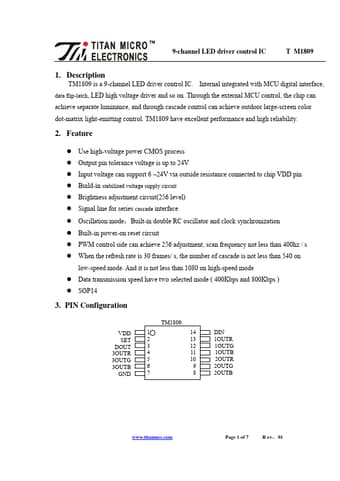

Preview of TM1809 PDF

Datasheet Details

Part number:

TM1809

Manufacturer:

Titan

File Size:

258.62 KB

Description:

9-channel led driver control ic.
