TM1812 Datasheet, Controller, Titan Micro

TM1812 Features

  • Controller Ø High power CMOS technology Ø 24V output port voltage endurance Ø VDD internally integrated with 5V VR-tube Ø Chip VDD externally connected with series resistor, 6-24V input voltage su

PDF File Details

Part number:

TM1812

Manufacturer:

Titan Micro

File Size:

267.03kb

Download:

📄 Datasheet

Description:

12-channel led driver controller. TM1812 is a 12-channel special circuit for LED driver control internally integrated with circuits of MCU digital interface, data latc

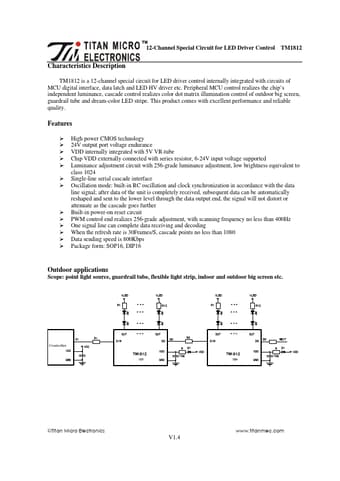

Datasheet Preview: TM1812 📥 Download PDF (267.03kb)
Page 2 of TM1812 Page 3 of TM1812

TM1812 Application

  • Applications Scope: point light source, guardrail tube, flexible light strip, indoor and outdoor big screen etc. DI RI Contr ol ler VCC VCC GN
