TM1814 Datasheet - Titan Micro

4-Channel LED Driver

TM1814 Features

* Adopt power CMOS technology

* Withstand voltage of OUT output port is 32V

* 5 V voltage-regulator tube is built in

TM1814 General Description

TM1814 is four channels LED constant current adjustable driver IC with function of internal control synchronizing, which can achieve a wide range of display as MCU inputs one group of data set by constant current and PWM to TM1814. When input signal is disconnected, it can realize synchronized fixat.

TM1814 Datasheet (313.02 KB)

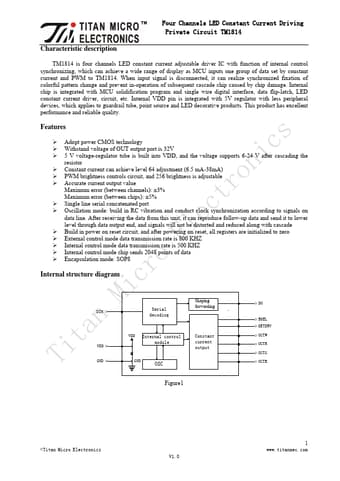

TM1814 Datasheet Preview — Preview of TM1814 PDF

Datasheet Details

Part number:

TM1814

Manufacturer:

Titan Micro

File Size:

313.02 KB

Description:

4-channel led driver.
