JTC455C29, JTC455C24 - Chip Ceramic Discriminator

Token

📥 Download Datasheet

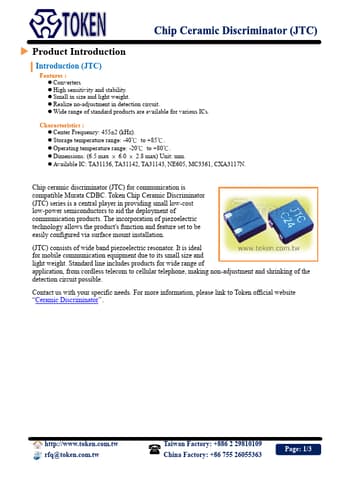

JTC455C29 Datasheet Preview — This datasheet PDF includes multiple part numbers: JTC455C29, JTC455C24. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	JTC455C29, JTC455C24
Manufacturer	Token
File Size	266.16 KB
Description	Chip Ceramic Discriminator
Datasheet	JTC455C24-Token.pdf
Note	This datasheet PDF includes multiple part numbers: JTC455C29, JTC455C24. Please refer to the document for exact specifications by model.

JTC455C29 Product details

Features

:.
Converters.
High sensitivity and stability.
Small in size and light weight.
Realize no-adjustment in detection circuit.
Wide range of standard products are available for various ICs. Characteristics :.
Center Frequency: 455±2 (kHz).
Storage temperature range: -40℃ to +85℃.
Operating temperature range: -20℃ to +80℃.
Dimensions: (6.5 max × 6.0 × 2.8 max) Unit: mm.
Available IC: TA31136, TA31142, TA31143, NE605, MC3361, CXA3117N. Chip cera.
