QSOP20 DAISY CHAIN TOP VIEW

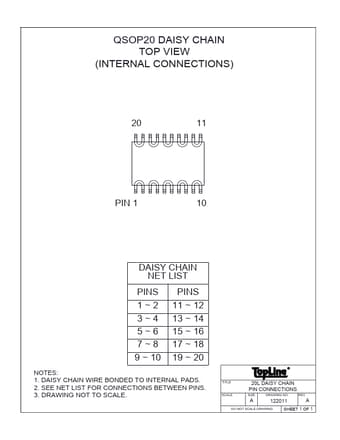

QSOP20 DAISY CHAIN TOP VIEW (INTERNAL CONNECTIONS) 20 11 PIN 1 10 DAISY CHAIN NET LIST PINS 1~2 3~4 5~6 7~8 9 ~ 10 PINS 11 ~ 12 13 ~ 14 15 ~ 16 17 ~ 18 19 ~ 20 NOTES: 1. DAISY CHAIN WIRE BONDED TO INTERNAL PADS. 2. SEE NET LIST FOR CONNECTIONS BETWEEN PINS. 3. DRAWING NOT TO SCALE. TITLE SCALE 20L DAISY CHAIN PIN CONNECTIONS SIZE DRAWING NO. REV A 122011 A DO NOT SCALE DRAWING SHEET 1 OF 1 .

QSOP20 Datasheet (47.44 KB)

QSOP20 Datasheet Preview — Preview of QSOP20 PDF

Datasheet Details

Part number:

QSOP20

Manufacturer:

TopLine

File Size:

47.44 KB

Description:

Daisy chain top view.
