TD300A - Current Transducers

Product Overview

Topstek

📥 Download Datasheet

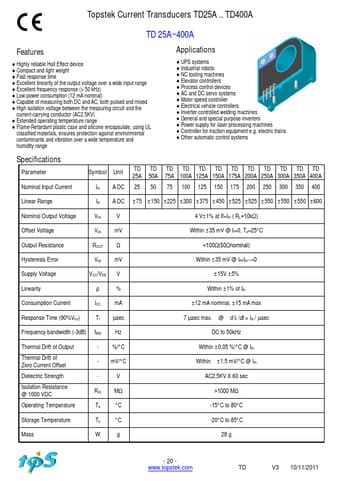

TD300A Current Transducers by Topstek - Datasheet Preview — Datasheet preview – TD300A

Datasheet Details

Part number	TD300A
Manufacturer	Topstek
File Size	297.56 KB
Description	Current Transducers
Datasheet	TD300A Datasheet
Additional preview pages of the TD300A datasheet.

Product details

Features

Highly reliable Hall Effect device.
Compact and light weight.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (12 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temperature.
