TD301MCANFD - Single high-speed CANFD isolated transceiver

Datasheet Summary

Features

  • Two-port isolation test voltage(2.5kVDC).
  • High baud rate of up to 5 Mbps.
  • Operating ambient temperature range: -40℃ to +105℃.
  • Complies with ISO 11898-5 physical layer standard.
  • Bus timeout protection.
  • Applicable to 24V or 12V systems.
  • Compact size, standard DIP8 package.
  • EN60950 approval TD301MCANFD / TD501MCANFD series are single-channel high-speed small-volume CANFD (flexible data rate) isolated transceiver modules with an upgraded version of CAN. The.

📥 Download Datasheet

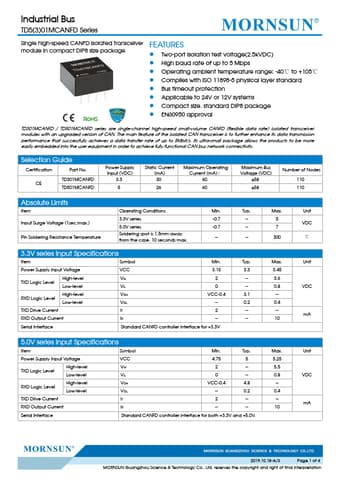

Datasheet preview – TD301MCANFD

Datasheet Details

Part number TD301MCANFD
Manufacturer MORNSUN
File Size 699.57 KB
Description Single high-speed CANFD isolated transceiver
Datasheet download datasheet TD301MCANFD Datasheet
Additional preview pages of the TD301MCANFD datasheet.
