TH10A, TH1A - Current Transducers

Topstek

📥 Download Datasheet

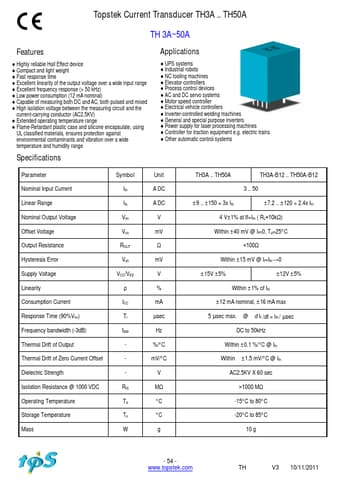

TH10A Datasheet Preview — This datasheet PDF includes multiple part numbers: TH10A, TH1A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TH10A, TH1A
Manufacturer: Topstek
File Size: 283.45 KB
Datasheet: TH1A-Topstek.pdf
Description: Current Transducers
Note: This datasheet PDF includes multiple part numbers: TH10A, TH1A.
Please refer to the document for exact specifications by model.

TH10A Product details

Features

Highly reliable Hall Effect device.
Compact and light weight.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (12 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temperature.
