TH1200F Datasheet, Driver, Zetex Semiconductors

TH1200F Features

  • Driver
  • LED drive current up to 350mA
  • Compatible with 12V and 24V standard systems
  • Handles transients up to 40V
  • Single Pin Control and Dimming function <

PDF File Details

Part number:

TH1200F

Manufacturer:

Zetex Semiconductors

File Size:

304.08kb

Download:

📄 Datasheet

Description:

350ma high efficiency step down led driver. The TH1200F is a high efficiency step-down converter optimized to drive high current LEDs. A patented switching control algorithm all

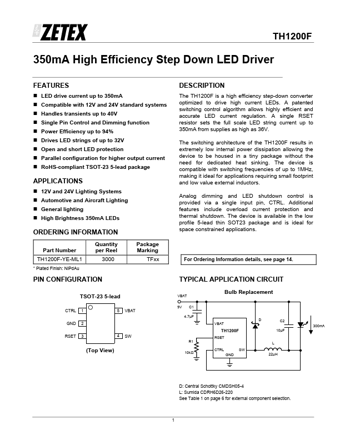

Datasheet Preview: TH1200F 📥 Download PDF (304.08kb)
Page 2 of TH1200F Page 3 of TH1200F

TH1200F Application

  • Applications
  • 12V and 24V Lighting Systems
  • Automotive and Aircraft Lighting
  • General lighting
  • High Brightness
