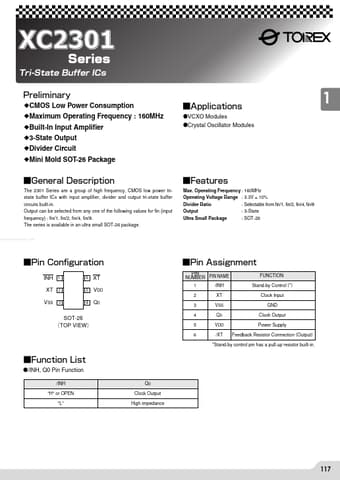

XC2301 Tri-State Buffer ICs

NCMOS Low Power Consumption NMaximum Operating Frequency : 160MHz NBuilt-In Input Amplifier N3-State Output NDivider Circuit NMini Mold SOT-26 Package GVCXO Modules GCrystal Oscillator Modules 1 The 2301 Series are a group of high frequency, CMOS low power tristate buffer ICs with input amplifier, divider and output tri-state buffer circuits built-in. Output can be selected from any one of the following values for fin (input frequency) : fin/1, fin/2, fin/4, fin/8. The series is available in a.

XC2301 Datasheet (167.46 KB)
