XC74UL14AA Datasheet - Torex Semiconductor

XC74UL14AA CMOS Logic

The XC74UL14AA is a CMOS schmitt trigger inverter, manufactured using silicon gate CMOS fabrication. CMOS low power circuit operation makes high speed LS-TTL operation achievable. With a wave forming buffer connected internally, stabilized output can be achieved as the circuit offers high noise immu.

XC74UL14AA Features

* High Speed Operation : tpd = 2.3ns (TYP.) Operating Voltage Range : 2V ~ 5.5V Low Power Consumption : 1μA (MAX.) CMOS Schmitt Trigger Inverter Ultra Small Packages

* Under Development : SSOT-25, SON-6

* PIN CONFIGURATION NC GND Vcc Y A

* FUNCTIONS INPUT A H L H=High level L=Low leve

XC74UL14AA_TorexSemiconductor.pdf

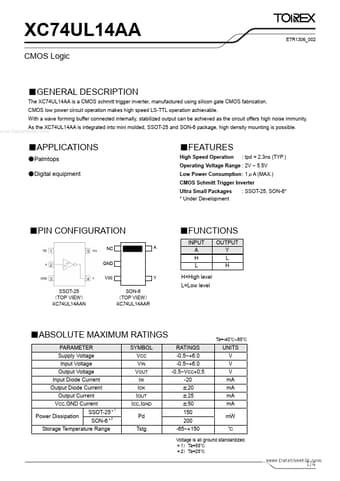

Preview of XC74UL14AA PDF
XC74UL14AA Datasheet Preview Page 2 XC74UL14AA Datasheet Preview Page 3

Datasheet Details

Part number:

XC74UL14AA

Manufacturer:

Torex Semiconductor

File Size:

325.75 KB

Description:

Cmos logic.
