XC3202 - Low Power Consumption Hall IC

XC3202 Description

XC3202 Series ETR0412-005 Low Power Consumption Hall IC (Magnetic Sensor) *GENERAL .
The XC3202 series is a Hall effect magnetic sensor IC with a built-in CMOS output driver.

XC3202 Applications

* such as mobile phones, electronic dictionaries and handheld game consoles. When the magnetic flux density (Omnipolar) is larger than the operating magnetic flux density (Bop), the CMOS output driver will be turned on (Detect Low). The output driver will be turned off (Release High) when the output i

📥 Download Datasheet

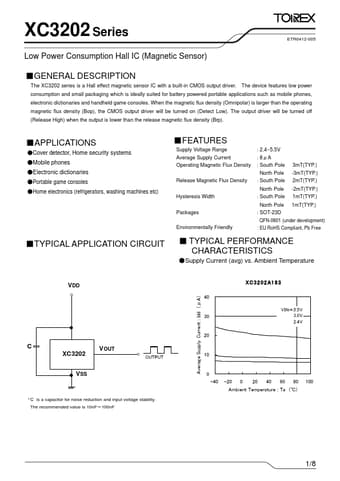

Preview of XC3202 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XC3202
Manufacturer
Torex
File Size
215.37 KB
Datasheet
XC3202-Torex.pdf
Description
Low Power Consumption Hall IC
