XC3202B - Hall effect magnetic sensor

XC3202B Description

XC3202B Series Low Power Consumption Hall IC (Magnetic Sensor) ETR2602-005a *GENERAL .
The XC3202B series is a Hall effect magnetic sensor IC with a built-in CMOS output driver.

XC3202B Applications

* such as mobile phones, electronic dictionaries and handheld game consoles. When the magnetic flux density is higher than the operating point (Bop), the Low level signal is output. The High level signal is output when the magnetic flux density is lower than the release point (Brp).
* APPLICATIONS

📥 Download Datasheet

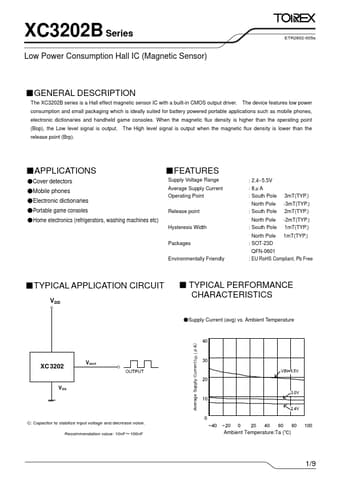

Preview of XC3202B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XC3202B
Manufacturer
Torex
File Size
193.45 KB
Datasheet
XC3202B-Torex.pdf
Description
Hall effect magnetic sensor
