XC6132 - Delay capacitor adjustable voltage detector

XC6132 Description

XC6132 Series Delay capacitor adjustable voltage detectors with sense pin isolation, surge voltage protection and HYS external adjustment ETR02032-00.
The XC6132 series are ultra-small delay capacitor adjustable type voltage detectors that have high accuracy and sense pin isolation.

XC6132 Features

* Operating Ambient Temperature : -40℃~+125℃ Operating voltage range : 1.6V~6.0V Detect voltage range : 0.8V~2.0V Detect voltage accuracy (Ta=25℃) : ±18mV(VDF<1.5V) : ±1.2%(1.5V≦VDF≦2.0V) Detect voltage accuracy (Ta=-40~125℃) : ±36mV(VDF<1.5V) : ±2.7%(1.5V≦VDF≦2.0V) Temperature Characteristi

XC6132 Applications

* Microcontroller reset and malfunction monitoring
* Battery voltage monitoring
* System power-on reset
* Power failure detection

📥 Download Datasheet

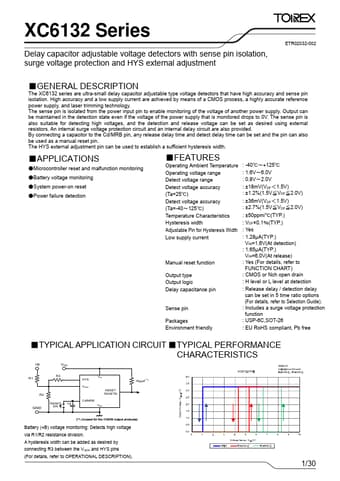

Preview of XC6132 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XC6132
Manufacturer
Torex
File Size
830.27 KB
Datasheet
XC6132-Torex.pdf
Description
Delay capacitor adjustable voltage detector
