XC6133 - Delay capacitor adjustable voltage detector

Product Overview

Torex

Part number	XC6133
Manufacturer	Torex
File Size	719.79 KB
Description	Delay capacitor adjustable voltage detector
Datasheet	XC6133 Datasheet

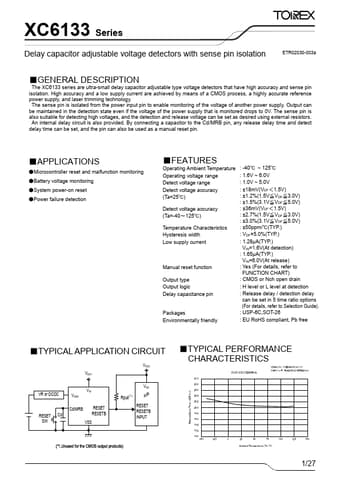

Additional preview pages of the XC6133 datasheet.

The XC6133 series are ultra-small delay capacitor adjustable type voltage detectors that have high accuracy and sense pin isolation.

Operating Ambient Temperature : -40℃ ~ 125℃ Operating voltage range : 1.6V ~ 6.0V Detect voltage range : 1.0V ~ 5.0V Detect voltage accuracy (Ta=25℃) Detect voltage accuracy (Ta=-40～125℃) Temperature Characteristics : ±18mV(VDF＜1.5V) : ±1.2%(1.5V≦VDF≦3.0V) : ±1.5%(3.1V≦VDF≦5.0V) : ±36mV(VDF＜1.5V) : ±2.7%(1.5V≦VDF≦3.0V) : ±3.0%(3.1V≦VDF≦5.0V) : ±50ppm/℃(TYP. ) Hysteresis width : VDF×5.0%(TYP. ) Low supply current : 1.28μA(TYP. ) VIN=1.6V(At detection) : 1.65μA(TYP. ) VIN=6.0V(At release).
