XC6211

300mA High Speed LDO Regulators

XC6211 Features

* Maximum Output Current : 150mA (VOUT1.8V, A~D type) 300mA (VOUT>1.3V, E~H type) Dropout Voltage : 200mV @ 100mA Operating Voltage Range : 2.0V ~ 6.0V Output Voltage Range : 0.9V ~ 5.0V (0.05V steps) Highly Accuracy : +2% (VOUT>1.5V) +30mV (VOUT≦1.5V) +1% (VOUT

XC6211 General Description

The XC6219/XC6211 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the XC6219/XC6211 series is ideal for today’s cutting edge mobile phone. Internally the XC6219/XC6211 includes a refe.

XC6211 Datasheet (1.39 MB)

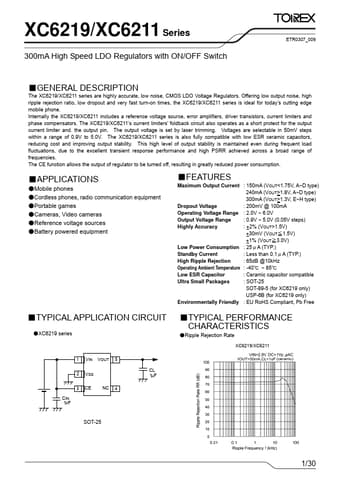

Preview of XC6211 PDF

Datasheet Details

Part number:

XC6211

Manufacturer:

Torex

File Size:

1.39 MB

Description:

300ma high speed ldo regulators.
